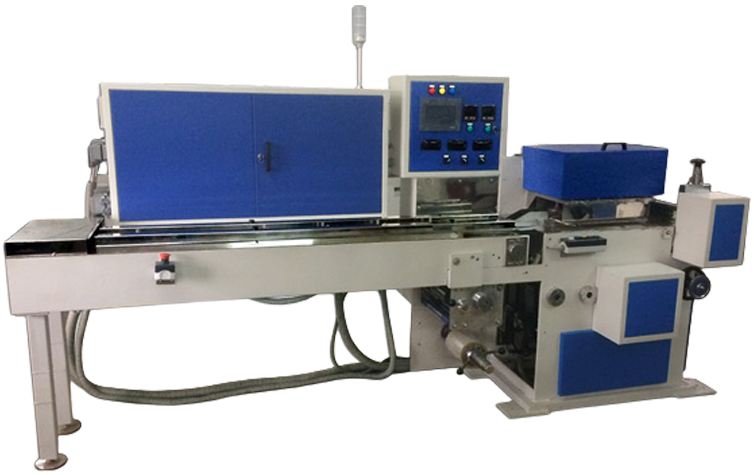

Inverted Flow Wrap Machine

Inverted Flow wrapper can pack loose, irregular, stick type product packing. such as vegetables. steamed dumpling, ice - bar, meat, hardware, food, bakery, confectionery, dairy, fresh produce, egg roll, sausage, squid, moon - cake, instant noodles, preserved fruit, jelly candy, toilet soap, pocket notebook, box pen sticky tape, pharmaceutical, & so on. The machine’s inverted film path gently transports the product directly onto film from the former through the cutting head, greatly reducing jams and enduring superior packing appearance.

Key Features

  • PLC Controller System, the photoelectric detection and bi - directional tracking, which can eliminate the error of packing and reduce the waste of packing film and raw materials.

  • Adopt bottom Feeding film to Packaging, the machine body, Can be cleaned by water.

  • Intelligent Temperature System, Intuitive display, easy for setting, accurate temperature.

  • High - speed, high efficiency, stable operation, low breakdown, easy maintenance etc.,

  • Date Printer, automatic Punching device, falling device, stainless steel version can be available.

Technical Specifications

  • Operation : Servo Based Reverse Sealing

  • Big length : 70-360 mm

  • Film Width : up to 360 mm

  • Product Height : up to 65 mm

  • Pack Speed : 25 - 250 bags / min

  • Voltage : 440V, 50 Hz

  • Total Power : 5 Hp 3 Phase

  • Dimension (mm) : 3900 X 920 X 1300

  • Wrapping Material : LDP / BOPP / Aluminum foil any heat sellable laminated Material

  • Settings : Parameter settings HMI Colour touch screen
