Automobile Packing Machine

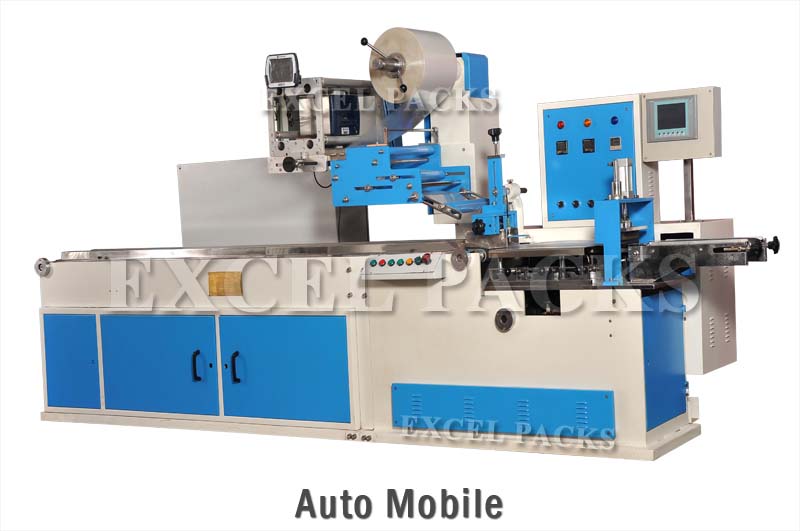

Horizontal Flow Wrap Machine

Horizontal Flow Wrap Machine can pack a variety of solid products of different shapes and sizes with all types of heat sealable films and laminates.These machines are extensively used to pack Appalams, Rusks, Biscuits, Bun, Chocolate Bars, Stick Ice Cream Bars, Cakes, Groundnut Chikkies, Cotton & Bandage Roles, Scrub Pads, Noodles centre sealed made of heat sealable laminated polyester or B.O.P.P film. Manufacturers of Quality Cake Packing Machine.

Technical Specifications

  • Conveyor length 2meters

  • Packing Style : Centre Seal

  • Film thickness 40 microns and above

  • Speed 10 to 50 packets per minute, Depending upon the product size paper thickness minimum 30 microns

  • Packing Material All Type of laminated (B.O.P.P, LD Poliester, Aluminium Foil etc.,)

  • Packing Size Length : 30mm to 300mm, Width : 30mm to 150mm, Height : 10 mm to 150mm

  • PLC Control System

  • 4 numbers of 150 watts pencil cutter heater

  • 4 numbers of 350 watts round heater Total 1850 watts

  • Proximal control, photo cell unit

  • Dimension: length : 3700mm, width : 1200mm, height : 1800mm Weight approx 800 to 1000kg


  • Cantilever construction that provides for easy cleaning and maintenance, with easy access to mechanical and electrical components

  • Left to right operating direction

  • Pneumatic type end sealing jaws

  • In feed conveyor 2000mm long

  • Adjustable film folding box

  • The LCD Display and numeric keyboard, provides ease in setting machine parameters, it displays operational and error messages

  • The control allows data storage for up to 15 different machine set-ups
