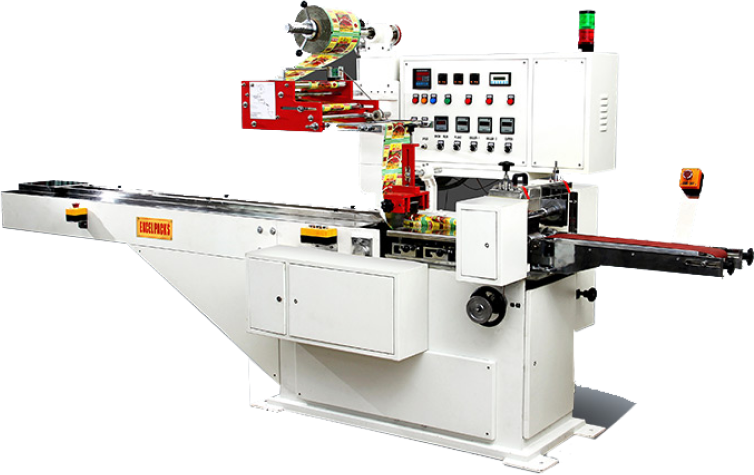

Flow Wrap Machine-025
Flow Wrap Machine-025
Horizontal Flow Wrap Machine can Pack avariety of solid products of differentshapes & sizws with all types of heatsealable films and laminators. Thesemachines are extensively used to packAppalams, Rusks, Biscuits, Bun, Chocolatebars, Ice Cream Bars, Cakes, groundnutchikkies, cotton & Bandage Roles, ScrubPads, Noodles Etc.
Key Features
-
Cantilever construction that provides for easy clinical and electrical components
-
Left to right operating direction
-
Rotary cross sealing jaws
-
Self-centering film reel holder with a operated brake system
-
Adjustable film folding box
-
For every cut length we should change timing gear wheel
-
Eye mark setting should be done for every cut length
-
If sensor misses the eve mark sensation correction should be done manually by using the forward button or else the eye mark setting should be done from the beginning
Technical Specifications
-
Operation : Electro Mechanical
-
Feeding Style : Manual / Automatic
-
Packing Style : Pillow Type Centre Seal
-
Product Size : Width 30 mm to 120 mm, Length 30 mm to 150 mm Height 05 mm to 60 mm
-
Packing film size : Width 100 mm to 375 mm Cut Length 75 mm to 240 mm
-
Production Output : Approx 30 to 120 Packs / minutes
-
Packing Material : All type of laminated (BOPP, LD Polyester, Aluminum Foil)
-
Motor : 1 HP 3 Phase 440 V
-
Heater : 50v, 2000 watts
-
Power : 3 kw
-
Machine Dimension : Length 3700 mm, Width 1200 mm, Hight 1800 mm
-
Machine Weight : 800 kg Approx
