Horizontal Four Side Sealing Pouch
Horizontal Four Side Sealing Pouch

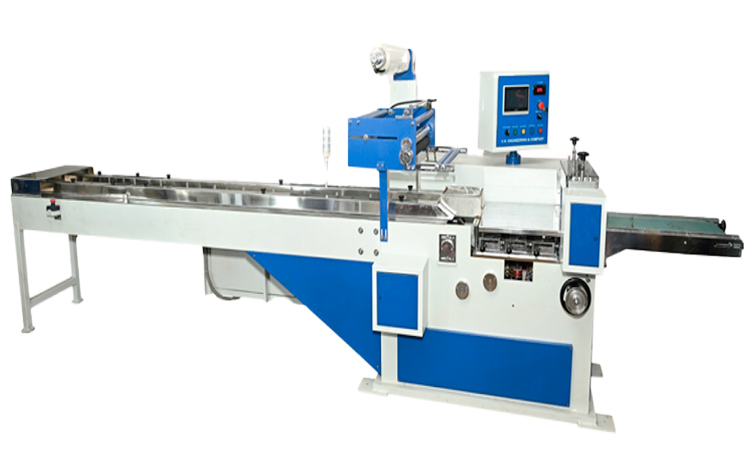

Horizontal four side sealing pouch packing machine can pack a variety of flexible products of different shapes and sizes with all types of heat sealable films and laminates. these machines are extensively used to pack gauze swaps, eye pad, face mask, tissues, etc., drive of machine is electro-mechanical.
Key Features
-
Cantilever construction that provides for easy cleaning and maintenance, with easy access to mechanical and electrical components
-
Left to right operating direction
-
Rotary cross sealing jaws with an electronic overload safety switch
-
Self-centering film reel holder with a operated brake system
-
In feed conveyor 3000 mm long
-
7.0”HMI 65K Color Display provides ease in setting machine parameters, it displays operational and error messages
-
The control allows data storage for multi different machine set-ups
-
Individual heater controls are used for easily find the heater conditions
-
Providing no product sensor for If there is no product in the feeding conveyor the sensor turns the machine off
Technical Specifications
-
Operating System : Electro Mechanical
-
Feeding Style : Manual
-
Packing Style : Four Side Seal
-
Packing Size : 50mm - 250mm, Width : 50mm - 150mm, Height : 5mm - 30mm
-
Packing Film Size : Cut Length : 80mm - 320mm, Open Width : 100mm - 300mm
-
Packing Material : All type of laminated (Bopp, LD Polyester, Poly Coated Paper)
-
Production Output : Approx. 20 To 100 Packs / Minute (Depending Upon Product Size)
-
Power : 440v, 4.5kw
-
Motor : 750w Servo Motor with Gear Box – 1No,750w Induction Motor with Gear Box - 1no
-
Heater : Pencil Heaters 50v, 350 W X 4 No’s, Round Heaters 50v,350w X 4 No’s
-
Machine Dimension : Length : 5100mm, Width:1000mm, Height: 1500mm (Approx.)
-
Machine Weight : 1100kg (Approx.)
